YD-DPSFHA6-12
Bipolar Corrugated Horn Antenna
YD-DPSFHA6-12 bipolar choke feed horn antenna operates from 110 GHz to 170 GHz. The antenna offers 12 dBi nominal gain. Linearly polarized radiation.
Product Category:
Bipolar Corrugated Horn Antenna
110~170GHz
10~15 dBi
Keywords:
Bipolar Corrugated Horn Antenna
Product Manual:
Price
$ 2375
Inventory Remaining
999
YD-DPSFHA6-12 bipolar choke feed horn antenna operates from 110 GHz to 170 GHz. The antenna offers 12 dBi nominal gain. Linearly polarized radiation.
The input port is WR6. The antenna is made by overall precision machining technology and gold plated, which ensures that the electrical performance is quite good.

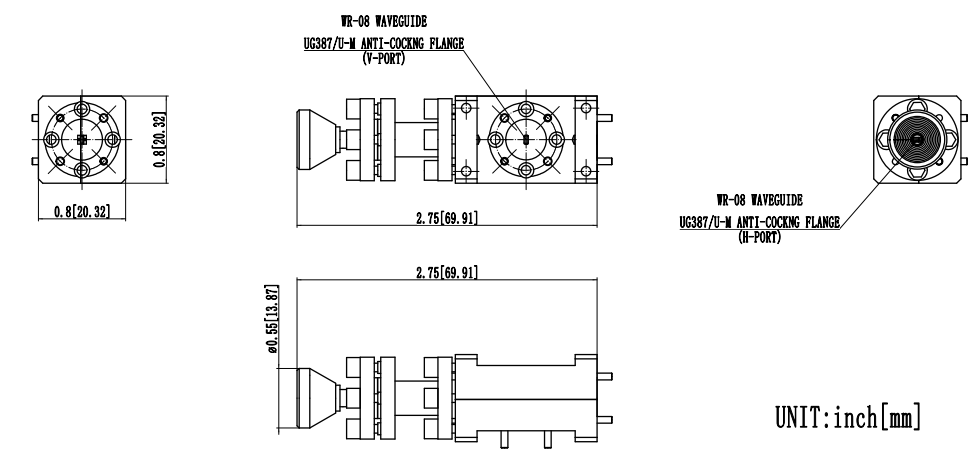

Mechanical Outline
|
Parameter |
Minimum |
Typical |
Maximum |
|
Frequency |
110 GHz |
|
170 GHz |
|
Gain |
|
12 dBi |
|
|
Polarization |
Linear polarization |
||
|
3dB beamwidth, E-plane |
|
45° |
|
|
3dB beamwidth, H-plane |
|
45° |
|
|
Side lobes, E-side |
|
-25 dB |
|
|
Side lobes, H-side |
|
-30 dB |
|
|
Port isolation |
|
35 dB |
|
|
Return loss |
|
15 dB |
|
|
Operating temperature |
-40 °C |
|
+85 °C |
|
Project |
Specification |
|
Antenna port |
WR-6 waveguide |
|
Flange type |
UG387/U flange |
|
Size |
69.91(L)×20.32(W)×20.32(H) |
|
Material |
Copper |
|
Surface treatment |
Gild |
|
Weight |
128.25g |
