YD-DPCFHA8-10
Bipolar Choke Feed Horn Antenna
YD-DPCFHA8-10 bipolar choke feed horn antenna operates from 90 GHz to 140 GHz. The antenna offers 10 dBi nominal gain. Linearly polarized radiation.
Product Category:
Bipolar Choke Feed Horn Antenna
90~140GHz
5~10 dBi
Keywords:
Bipolar Choke Feed Horn Antenna
Product Manual:
Price
$ 1980
Inventory Remaining
999
YD-DPCFHA8-10 bipolar choke feed horn antenna operates from 90 GHz to 140 GHz. The antenna offers 10 dBi nominal gain. Linearly polarized radiation.
The input port is WR-8. The antenna is made by overall precision machining technology and gold plated, which ensures that the electrical performance is quite good.

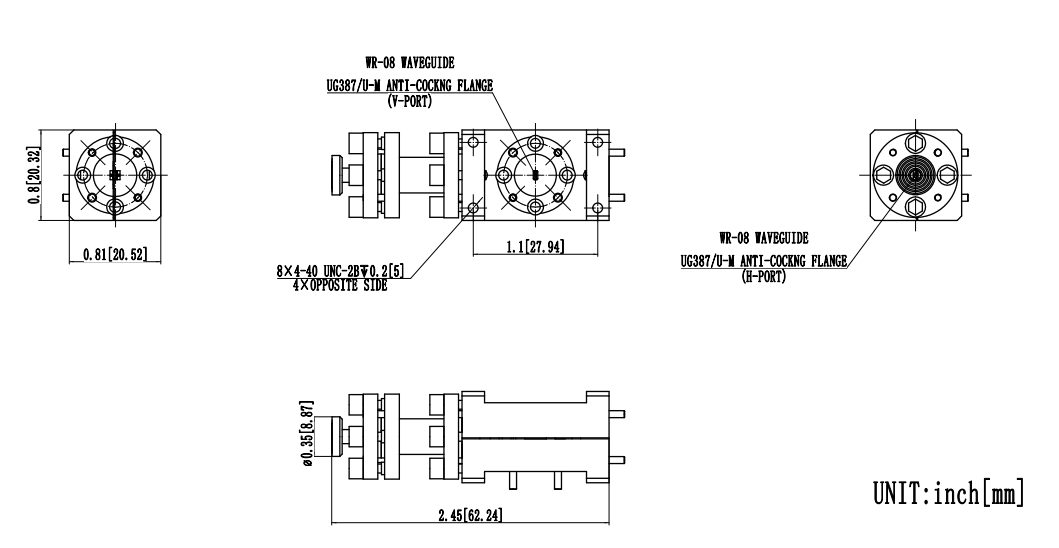

Mechanical Outline
|
parameter |
minimum |
typical |
maximum |
|
frequency |
90 GHz |
|
140 GHz |
|
gain |
|
10 dBi |
|
|
polarization |
Linear polarization |
||
|
3dB beamwidth, E-plane |
|
60° |
|
|
3dB beamwidth, H-plane |
|
60° |
|
|
Side lobes |
|
-25 dB |
|
|
Port isolation |
|
35 dB |
|
|
Return loss |
|
15 dB |
|
|
Operating temperature |
-40 °C |
|
+85 °C |
|
project |
specification |
|
Antenna port |
WR-8 waveguide |
|
Flange type |
UG387/U flange |
|
size |
62.24(L) × 20.52(W) ×20.52 (H) |
|
material |
copper |
|
Surface treatment |
gild |
|
weight |
123.69g |
