YD-DRHA218-1
Dual-Ridged Horn Antenna
The YD-DRHA218-1 dual-ridge fully enclosed horn antenna is a wideband horn antenna that operates in the frequency range from 2GHz to 18GHz.
Product Category:
Ridged Horn Antenna
12.4~18GHz
15~20 dBi
Keywords:
Double-Ridged Horn Antenna
Product Manual:
Price
$ 857
Inventory Remaining
999
YD-DRHA218-1 dual-ridged horn antenna is a wide-band horn antenna that operates from 2 GHz to 18 GHz.
By loading ridge structures inside the waveguide, the low-frequency cutoff frequency of the waveguide can be reduced while increasing the cutoff frequency of higher-order modes, thereby enabling the waveguide to operate over a bandwidth of 10:1.

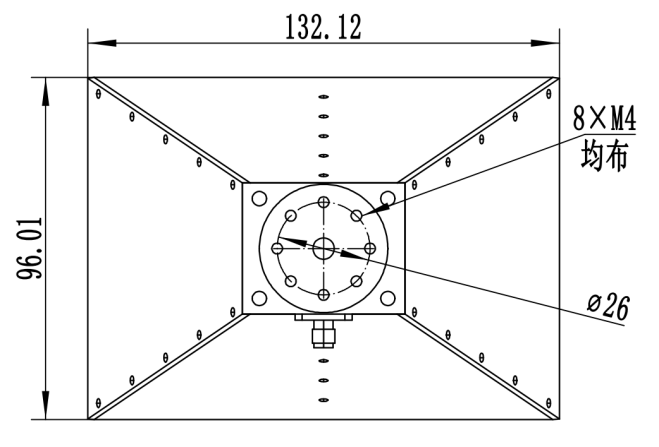

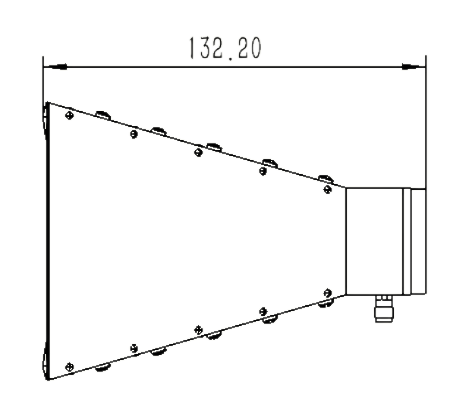

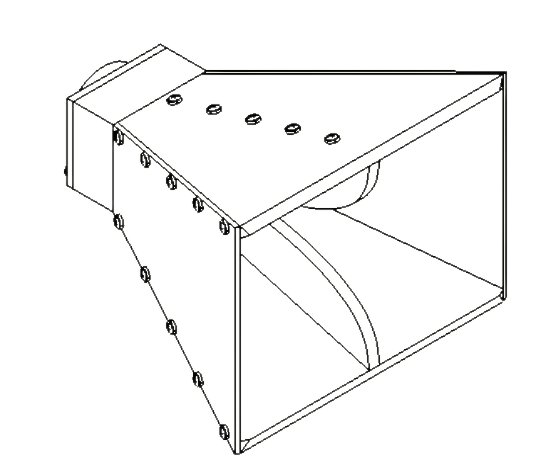

Mechanical Outline
|
Parameter |
Minimum |
Typical |
Maximum |
|
Frequency |
2 GHz |
|
18 GHz |
|
Gain |
6dBi |
10 dBi |
16dBi |
|
Polarization |
Linear polarization |
||
|
3dB beamwidth, E-plane |
83° |
39° |
23° |
|
3dB beamwidth, H-plane |
58° |
30° |
24° |
|
Return loss |
|
10 dB |
|
|
Operating temperature |
-40 °C |
|
+85 °C |
|
Project |
Specification |
|
Antenna port |
SMA |
|
Size |
132.20(L)×132.12(W)×96.01(H) |
|
Material |
Aluminium |
|
Surface treatment |
Conductive oxidation/painting |
|
Weight |
494.83g |
