YD-WRJ137-L
Rotary Joint
YD-WRJ10-I is a C-band L-type waveguide rotating joint that operates from 5.85 GHz to 6.725 GHz. The rotating joint adopts high-precision bearings and non-contact mechanical design to ensure stable amplitude and phase stability during joint rotation. At the same time, the joint adopts a non-contact mechanical design, thus having high power tolerance.
Product Category:
Rotating Joint
Keywords:
Rotary Joint
Product Manual:
Price
$ 111
Inventory Remaining
999
YD-WRJ10-I is a C-band L-type waveguide rotating joint that operates from 5.85 GHz to 6.725 GHz. The rotating joint adopts high-precision bearings and non-contact mechanical design to ensure stable amplitude and phase stability during joint rotation. At the same time, the joint adopts a non-contact mechanical design, thus having high power tolerance.

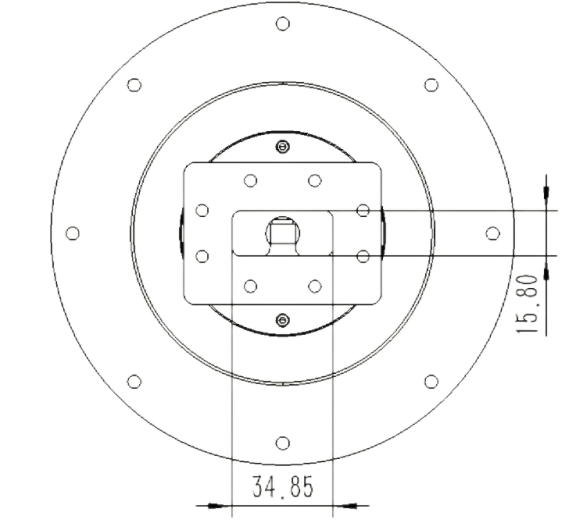

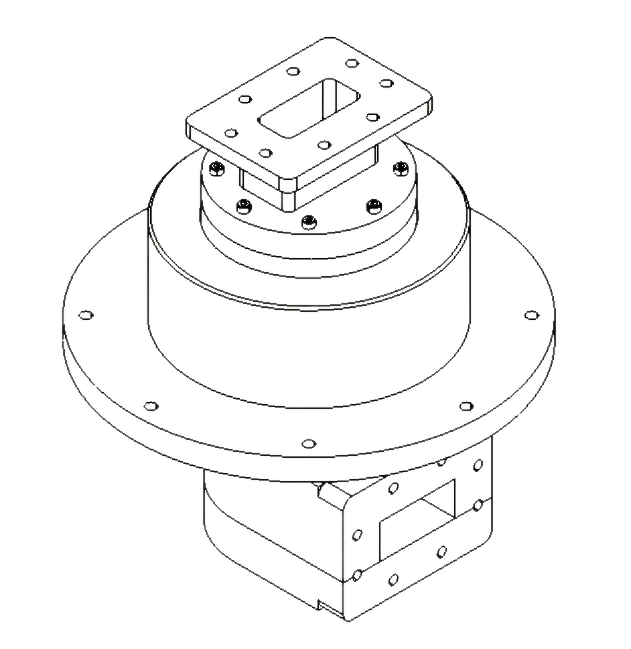

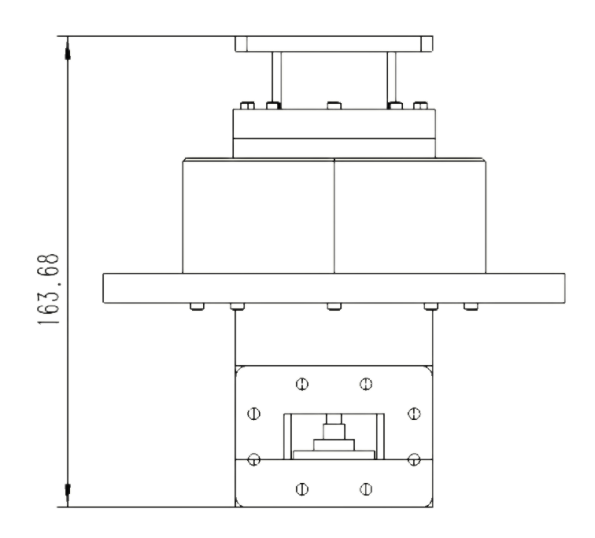

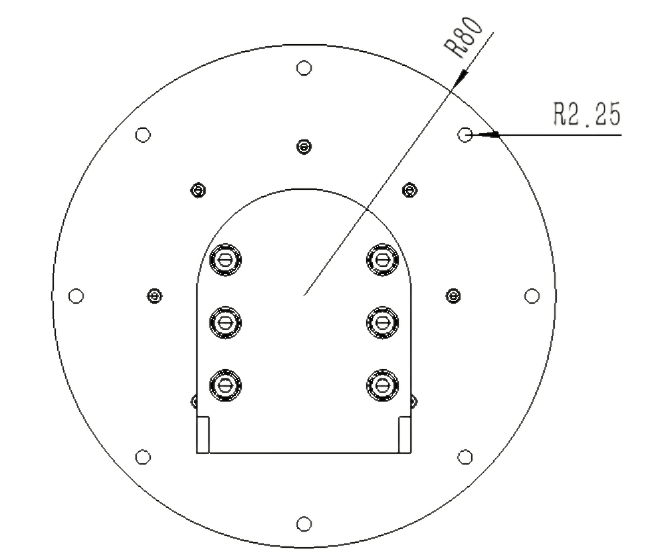

Mechanical Outline
|
Parameter |
Minimum |
Typical |
Maximum |
|
Frequency range |
5.85GHz |
|
6.725 GHz |
|
Insertion loss |
|
0.1 dB |
|
|
Insertion loss as a function of rotation |
|
0.05dB |
|
|
VSWR |
|
1.2 |
|
|
Return loss as a function of rotation |
|
0.05dB |
|
|
The change in phase when rotating |
|
2° |
|
|
Power handling |
|
1000 W(CW) |
|
|
Operating temperature |
-40°C |
|
+85°C |
|
Structural parameters |
Description |
|
Waveguide size |
BJ70 |
|
Material |
Aluminium |
|
Surface treatment |
Conductive oxidation |
|
Weight |
2.12kg |
