YD-CWE4-25.4×25.4
Bends Waveguide
YD-CWE4-25.4×25.4 is a WR4 curved waveguide with UG-387/U flange. Integrated precision machining process is adopted to ensure excellent quality and strength. The waveguide covers a frequency range of 170 to 260 GHz.
Product Category:
Waveguide Bend
170~260GHz
Keywords:
Bends Waveguide
Product Manual:
Price
$ 220
Inventory Remaining
999
YD-CWE4-25.4×25.4 is a WR4 curved waveguide with UG-387/U flange. Integrated precision machining process is adopted to ensure excellent quality and strength. The waveguide covers a frequency range of 170 to 260 GHz.

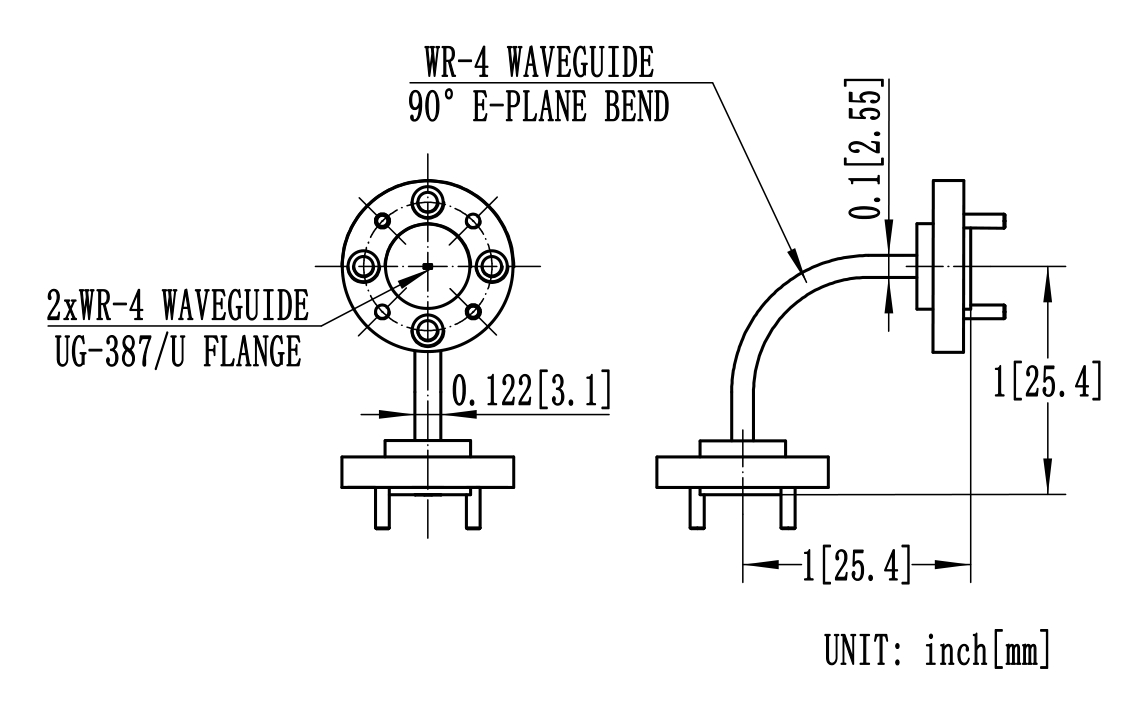

Mechanical View
|
Parameter |
Minimum |
Typical |
Maximum |
|
Passband frequency |
170 GHz |
|
260GHz |
|
VSWR |
|
1.05（max1.11) |
|
|
Length |
|
50mm |
|
|
Operating temperature |
-40 °C |
|
+85 °C |
|
Project |
Specification |
|
Enter the port |
WR4，UG-387/U flange |
|
Output port |
WR4，UG-387/U flange |
|
Material |
Copper |
|
Surface treatment |
Gild |
