YD-SW8-25.4×25.4
Bends Waveguide
YD-SW8-25.4×25.4 is a WR8 straight waveguide with UG-387/U flange. Integrated precision machining process is adopted to ensure excellent quality and strength. The waveguide covers a frequency range of 90 to 140 GHz.
Product Category:
Waveguide Bend
90~140GHz
Keywords:
Bends Waveguide
Product Manual:
Price
$ 85
Inventory Remaining
999
YD-SW8-25.4×25.4 is a WR8 straight waveguide with UG-387/U flange. Integrated precision machining process is adopted to ensure excellent quality and strength. The waveguide covers a frequency range of 90 to 140 GHz.

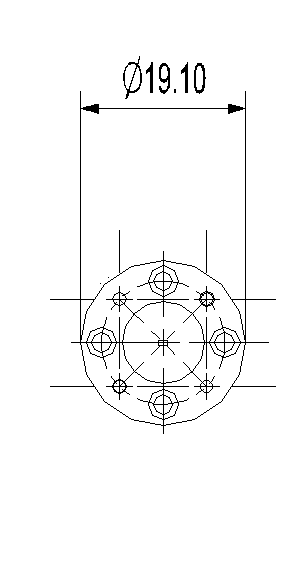

Mechanical View
|
Parameter |
Least |
Typical |
Highest |
|
frequency |
90GHz |
|
140GHz |
|
VSWR |
|
1.08（max1.15) |
|
|
Length |
|
50mm |
|
|
Operating temperature |
-40℃ |
|
+85℃ |
|
Project |
Description |
|
Enter the port |
WR10，UG-387/U flange |
|
Output port |
WR10，UG-387/U flange |
|
Material |
Copper |
|
Surface treatment |
Gild |
