YD-SFHA6-12
Corrugated Horn Antenna
The YD-SFHA6-12 is a D-band corrugated horn antenna with an operating frequency range of 110GHz to 170GHz. The antenna provides a typical gain of 12 dBi.
Product Category:
Corrugated Horn Antenna
110~170GHz
10~15 dBi
Keywords:
Corrugated Horn Antenna
Product Manual:
Price
$ 1075
Inventory Remaining
999
The YD-SFHA6-12 is a D-band corrugated horn antenna with an operating frequency range of 110GHz to 170GHz. The antenna provides a typical gain of 12 dBi.
Linearly/Circular polarized radiation. The input port is WR-6, and the antenna adopts the integral wire cutting process, which ensures that the antenna has excellent electrical performance indicators.

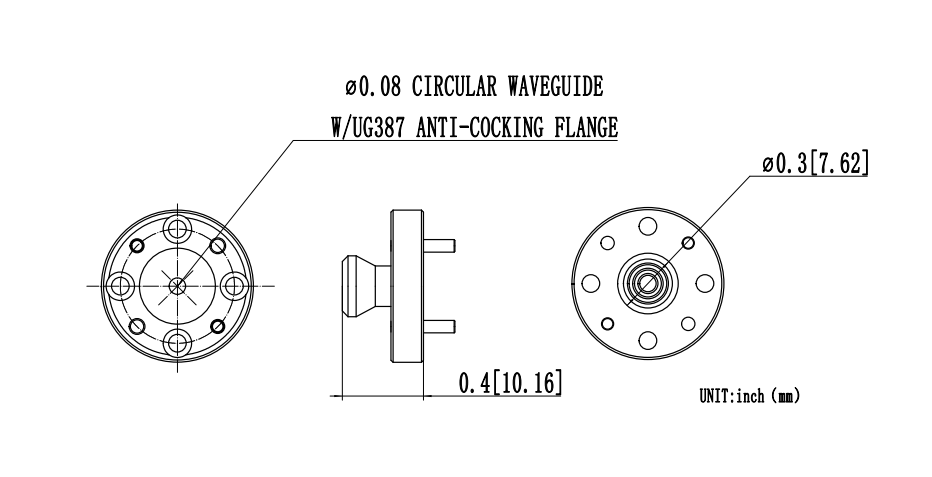

Mechanical Outline
Parameter | Minimum | Typical | Maximum |
Frequency | 110 GHz |
| 170 GHz |
Gain |
| 12 dBi |
|
Polarization | Lineal/circular polarization | ||
3dB beamwidth, E-plane |
| 45° |
|
3dB beamwidth, H-plane |
| 45° |
|
Side lobes |
| -24 dB |
|
Return loss |
| 18 dB |
|
Operating temperature | -40 °C |
| +85 °C |
Project | Specification |
Antenna port | WR-6 waveguide |
Size | 10.16 (L)×19.05 (W)×19.05 (H) |
Material | Copper |
Surface treatment | Gild |
Weight | 9.78 g |
