YD-SFHA8-15
Corrugated Horn Antenna
The YD-SFHA8-15 is an F-band corrugated horn antenna with an operating frequency range of 90GHz to 140GHz. The antenna provides a typical gain of 15 dBi.
Product Category:
Corrugated Horn Antenna
90~140GHz
10~15 dBi
Keywords:
Corrugated Horn Antenna
Product Manual:
Price
$ 925
Inventory Remaining
999
The YD-SFHA8-15 is an F-band corrugated horn antenna with an operating frequency range of 90GHz to 140GHz. The antenna provides a typical gain of 15 dBi.
Linar/circularly polarized radiation. The input port is WR-8, and the antenna adopts the overall wire cutting process to ensure that the antenna has excellent electrical performance indicators.

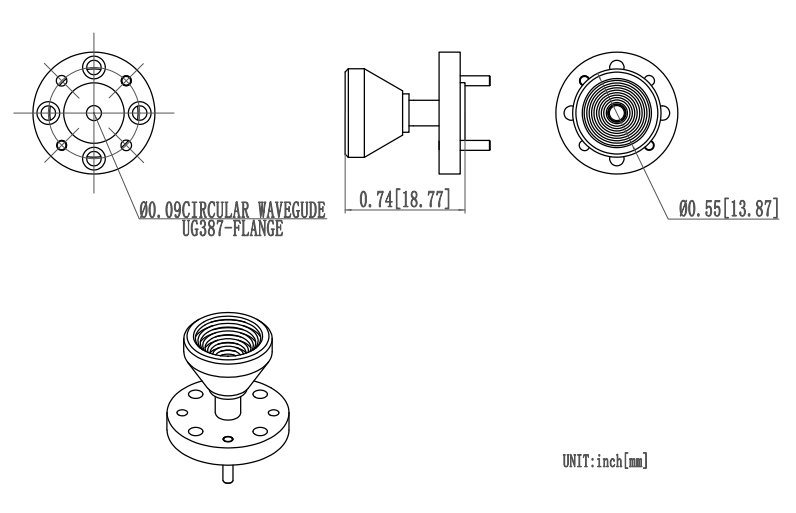

Mechanical Outline
|
Parameter |
Minimum |
Typical |
Maximum |
|
Frequency |
90 GHz |
|
140 GHz |
|
Gain |
|
15 dBi |
|
|
Polarization |
Lineal/circular polarization |
||
|
3dB beamwidth, E-plane |
|
27° |
|
|
3dB beamwidth, H-plane |
|
27° |
|
|
Side lobes |
|
-24 dB |
|
|
Return loss |
|
26 dB |
|
|
Operating temperature |
-40 °C |
|
+85 °C |
|
Project |
Specification |
|
Flange type |
UG387/U flange |
|
Size |
18.77(L)×13.87(W)×13.87(H) |
|
Material |
Copper |
|
Surface treatment |
Gild |
|
Weight |
45.96 g |
